URL
Description
|
The Masking URL component expects a URL-like string upon input and provides a value for the URL upon output. There are three types of the URL, those for financial companies, health companies, and the mix of both. 0 stands for the mix, 1 indicates financial institutions, and 1 provides healthcare companies’ URL. |
Usage Instructions:
|

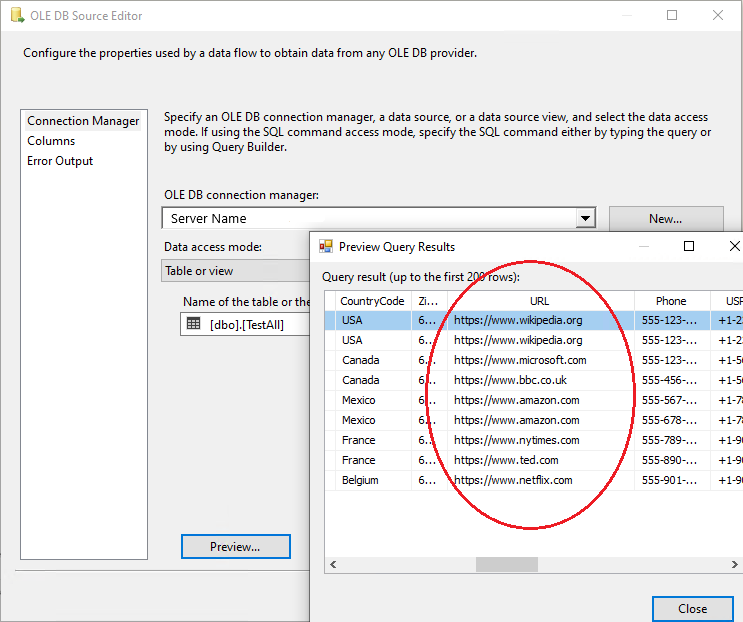

1. Configure a source that contains the column with alphabetical and numeric characters. The data in the column may also include any other character that will be treated as a separator.
+
|
|

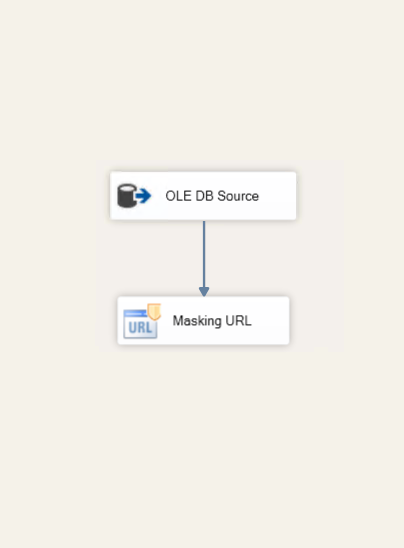

2. Drag and Drop URL masking component, connect the source and the URL component with the source's precedence constraint:
|
|

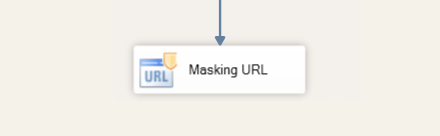

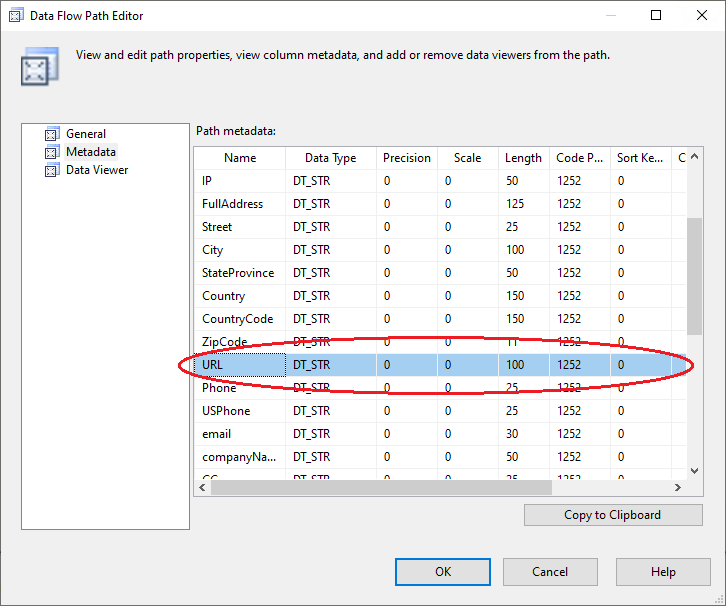

3. Now, the precedence constraint (the blue arrow) passes proper meta-data to the URL component. If you click on constraint, you will see:
+
|
|

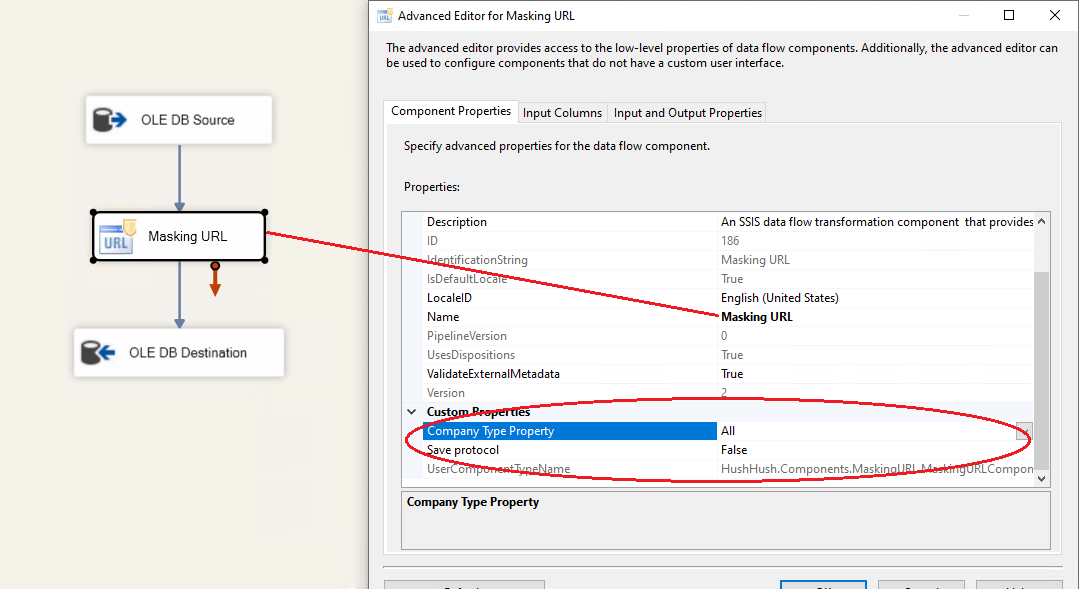

4. Now that the metadata for the URL exists, and values are passed into the data masking component, please open the component editor:
+
|
|

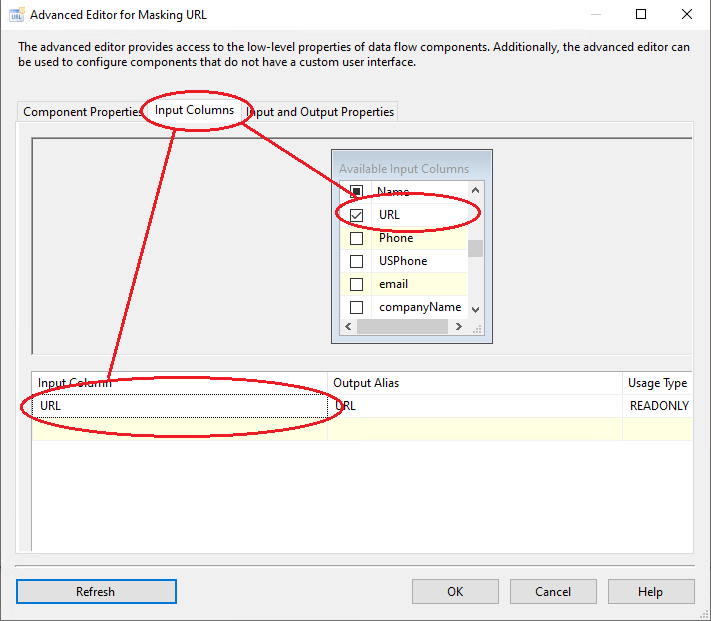

5. In the second tab, there are input columns. Please check-mark only one column, the one that you will be masking with URL algorithm:
+
|
|

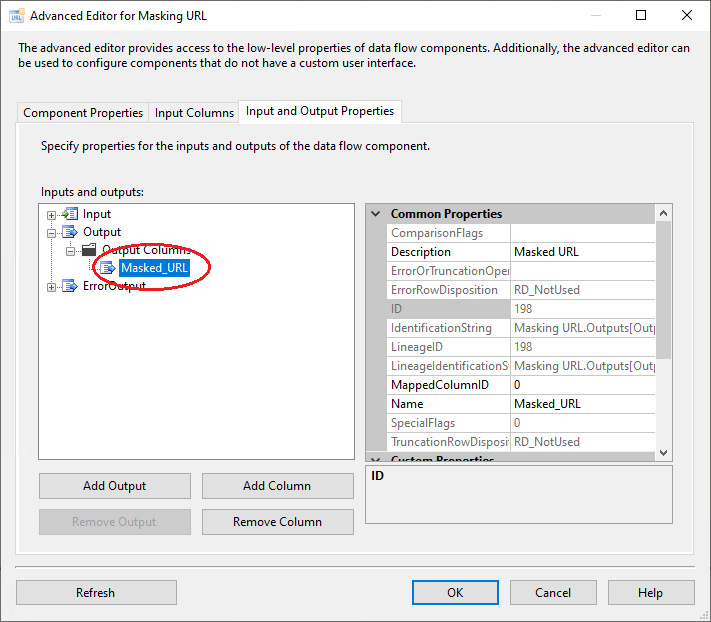

6. This will create an extra column with the prefix “Masked_”.
+
|
|

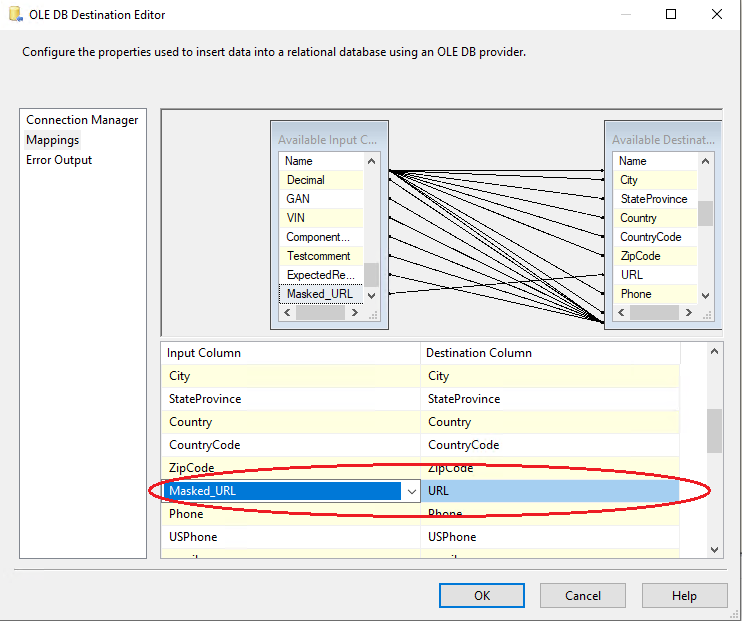

7. Create a connection manager for the destination and configure source component for the destination. In the connection manager, in the tab “Mappings”, specify that you want newly created Field_Masked to be a field replacing the original value. For that, just click on the available input columns, choose the masked value, and map to the “Available Destination Columns”
+
|
|

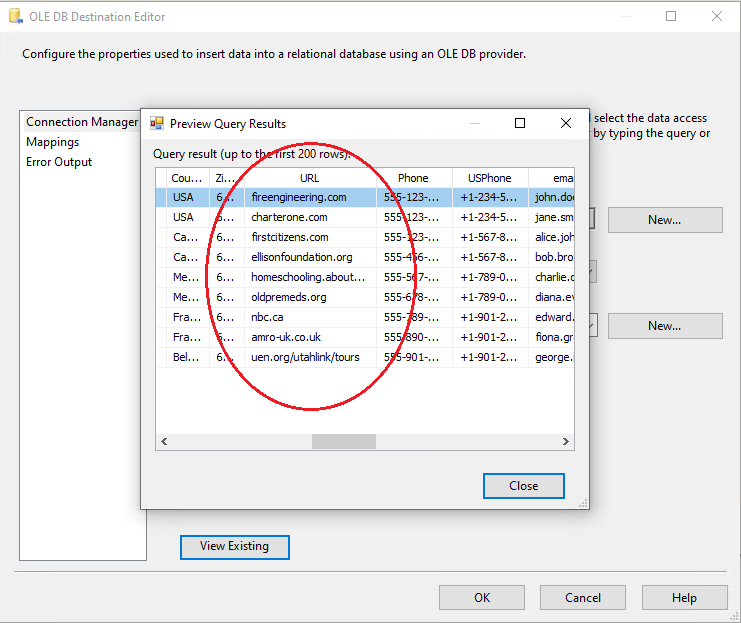

8. Now, all the configurations are complete for the valid values. You can run the package with the URL Data Masking component, and see the results of data masking:
+
|
